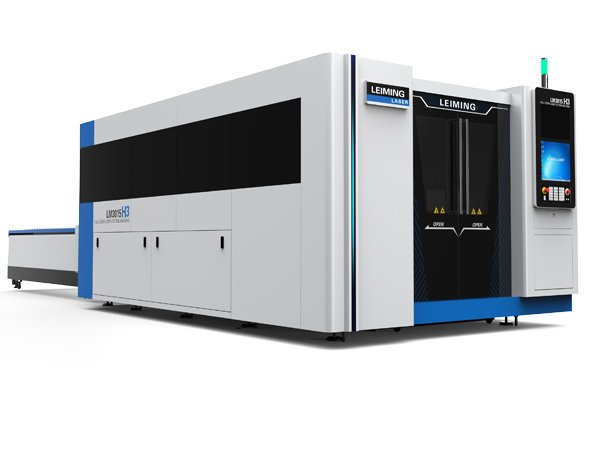

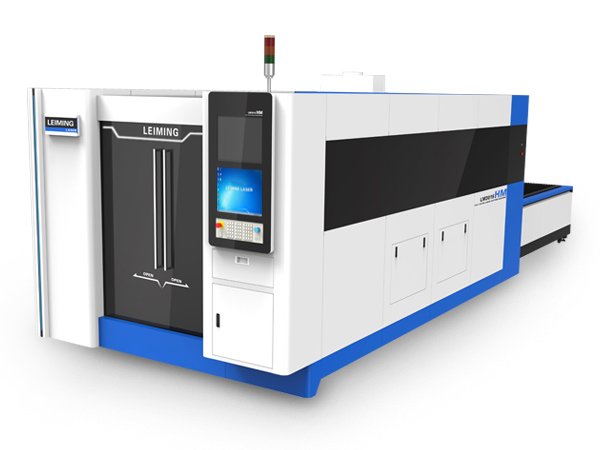

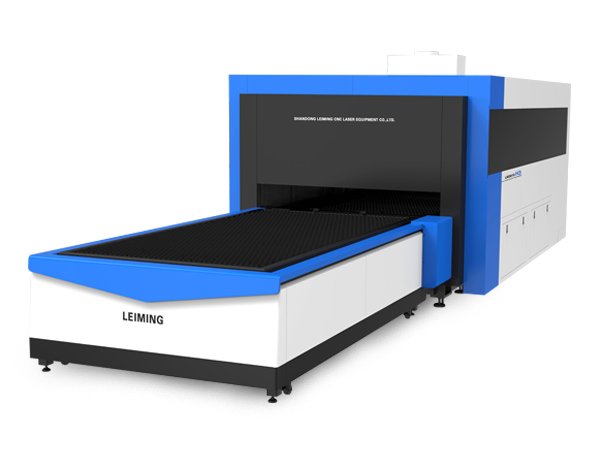

High-power fiber metal laser cutter with full cover LM3015H3
Product Description
- Working Area 3000 x 1500 mm (9.8 x 4.9 feet), cutting metal sheet and metal pipes
- Fiber power: 1500W to 6000W.
- Cutting up to 24 mm Carbon Steel, 14mm Stainless Steel, 12 mm Aluminium, 10mm brass and can cut round tube diameter from 20 mm to 200 mm, square tube diameter from 20*20 mm to 140*140 mm.
| Model | LM3015H3 metal plates fiber laser cutting machine |
| Working area | 3000 x 1500 mm |
| Laser power | 1500W / 2000W / 3000W / 4000W / 6000W / 12000W |
| Length range of pipe cutting | 0~3000 mm / 0~6000 mm |
| Positioning accuracy | ±0.05 mm/m |
| Repeated positioning accuracy | ±0.03 mm/m |
| Maximum speed of movement | 130 m/min |
| Power supply | 380 V / 50 Hz |
| Machine dimension | 8330*3600*2030 (3M) / 8850*3600*2030 (6M) |
| Two Main Features | 1. Exchange table for uploading metal sheet 2. Full protection cover |
Cutting Materials and Thickness
| Stainless Steel | 0.4-6mm | 0.4-8mm | 0.4-10mm | 0.4-12mm | 0.4-14mm |
| Carbon Steel | 0.4-14mm | 0.4-16mm | 0.4-20mm | 0.4-22mm | 0.4-24mm |
| Aluminum | 0.4-4mm | 0.4-6mm | 0.4-8mm | 0.4-10mm | 0.4-12mm |
| Fiber Power | 1500W | 2000W | 3000W | 4000W | 6000W |
More details about other thin metal materials, just leave your message on line or send e-mail to: info@laser.bz
Features
- Stable and reliable light path system and control system.
- Imported original fiber laser generator with great and stable performance to have lifespan over 100,000 hours.
- High cutting quality and efficiency with cutting speed up to 60m/min and beautiful ,smooth cutting edge.
- Special CNC system for laser cutting ,servo motors and high precision gear and rack.
- Comprehensive protection cover for the whole machine to reduce laser emissions.
- Dual working table to save feeding time.
- High efficiency and low operating cost for steel plate with medium and high thickness specially.
Video
available soon
Application
High-power fiber metal laser cutter with full cover is specially used for cutting 0.4-25 mm carbon steel; 0.4-16 mm stainless steel, galvanized steel, Electrolysis board, Silicon steel; 0.4-16 mm Aluminum Alloy; 0.4-10 mm brass and cooper and other thin metals.
