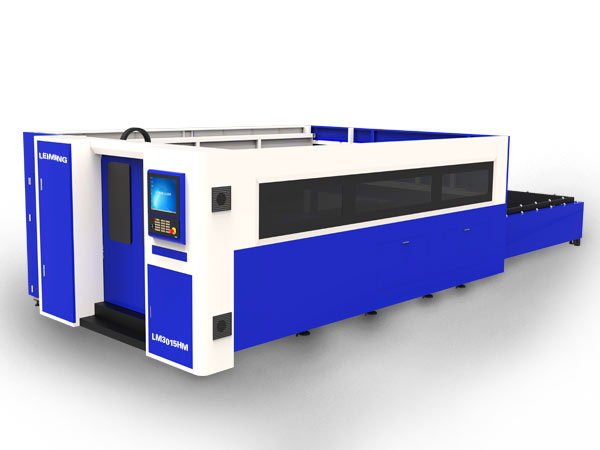

  •  LM3015HM3

  1. Working Area 3000 x 1500 mm (9.8 x 4.9 feet), cutting metal sheet and metal pipes
  2. Fiber power: 1500W to 6000W.
  3. Cutting up to 24 mm Carbon Steel, 14mm Stainless Steel, 12 mm Aluminium, 10mm brass and can cut round tube diameter from 20 mm to 200 mm, square tube diameter from 20*20 mm to 140*140 mm.
Model LM3015HM3
Working area 3000*1500 mm
Laser power 1500W / 2000W / 3000W / 4000W / 6000W
Length range of pipe cutting 0~3000 mm / 0~6000 mm
Positioning accuracy ±0.05 mm/m
Repeated positioning accuracy ±0.03 mm/m
Maximum velocity of movement 80 m/min
Power supply 380 V / 50 Hz
Machine dimension 8330*3600*2030 (3M) / 8850*3600*2030 (6M)

Cutting Materials and Thickness

Stainless Steel 0.4-6mm 0.4-8mm 0.4-10mm 0.4-12mm 0.4-14mm
Carbon Steel 0.4-14mm 0.4-16mm 0.4-20mm 0.4-22mm 0.4-24mm
Aluminum 0.4-4mm 0.4-6mm 0.4-8mm 0.4-10mm 0.4-12mm
Fiber Power 1500W 2000W 3000W 4000W 6000W

More details about other thin metal materials, just leave your message on line or send e-mail to:


  • Stable and reliable light path system and control system.
  • Integrated design for the whole machine with left and right funnels as collectors to save space.

Cutting metal sheets and metal pipes,cost-saving and high performance cost ratio.


available soon


Full protection metal plates and pipes fiber laser cutter LM3015HM3 is specially for cutting 0.4-24 mm carbon steel plates (pipes), 0.4-14 mm stainless steel (pipes), galvanized steel plates and pipes, electrolytic zinc-coated steel (pipes), 0.4-12 mm aluminum sheet (pipes) and 0.4-6 mm brass (pipes) and other thin metal materials.

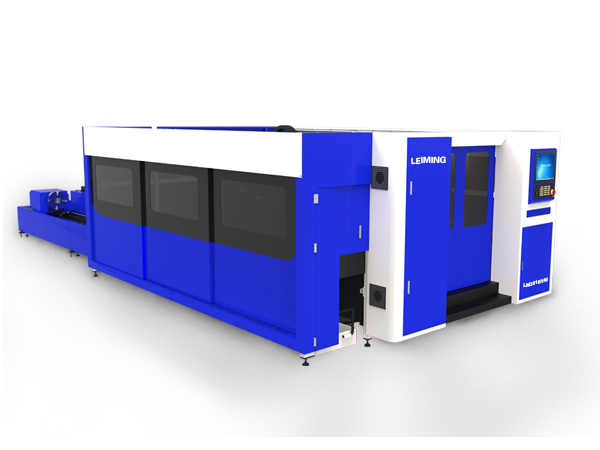

metal tubes fiber laser cutter.jpg
