Laser 3D do cięcia rur z połnymi osłonami LM3015HM

Contact BZ LC :: www.Laser.BZ (this link to contact us)

  •  LM3015HM
  •  LEIMING
  1. Working area: 3000 mm x 1500 mm (9.8 x 4.9 feet)
  2. Fiber laser source power: 1500 W / 2000 W / 3000 W / 4000 W / 6000 W / 8 000 W/ 10 000 W / 12000 W
  3. Cut round tube diameter from 20 mm to 200 mm, square tube diameter from 20 x 20 mm to 140 x 140 mm.

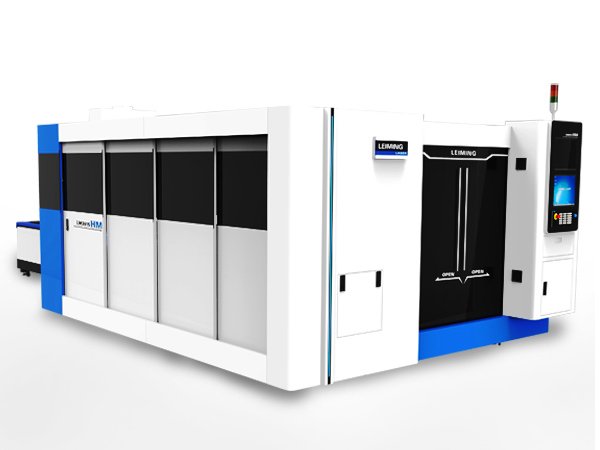

metal lazer cutting machine 3015HM.jpg

LM3015HM is the high-power metal tube lazer cutting machine which is used to cut both metal tube and metal plates, it is equiped with full-protection cover and auto-feeding table. The fiber laser power can be 1500w/2000w/3000w/4000w/6000w/12000w

Model LM3015HM3
Working Area 3000mm*1500mm
Laser Power 1500 W / 2000 W / 3000 W / 4000 W / 6000 W / 12000 W ( 1 kW, 1.5 kW, 2 kW, 3 kW, 4 kW, 6 kW, 8 kW, 10 kW, 12 kW )
Maximum speed of movement 130 m / min

Cutting Materials and Thickness

Stainless Steel 0.4-6mm 0.4-8mm 0.4-10mm 0.4-12mm 0.4-14mm
Carbon Steel 0.4-14mm 0.4-16mm 0.4-20mm 0.4-22mm 0.4-24mm
Aluminum 0.4-4mm 0.4-6mm 0.4-8mm 0.4-10mm 0.4-12mm
Fiber Power 1500W 2000W 3000W 4000W 6000W

More details about other thin metal materials, just leave your message on line or send e-mail to: info@laser.bz

Features

  • Stable and reliable light path system and control system.
  • Integrated design for the whole machine with left and right funnels as collectors to save space.
  • Cutting metal sheets and metal pipes,cost-saving and high performance cost ratio.

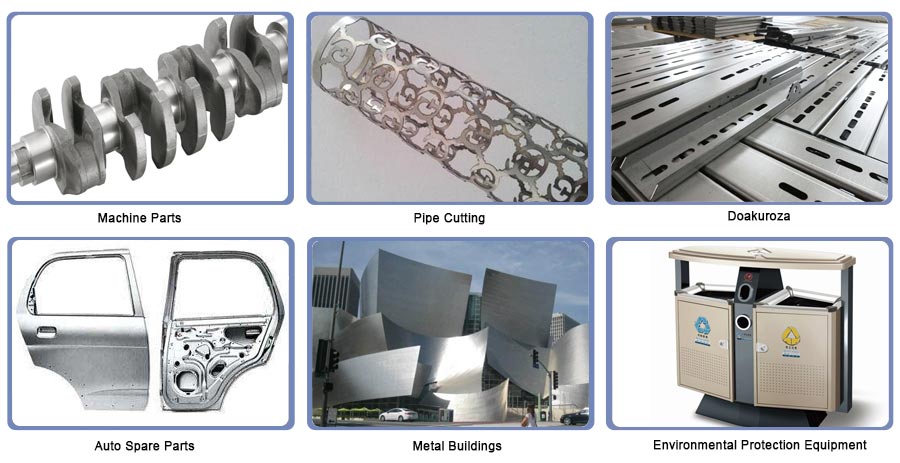

Application

Full protection metal plates and pipes fiber laser cutter LM3015HM3 is specially for cutting 0.4-24 mm carbon steel plates (pipes), 0.4-14 mm stainless steel (pipes), galvanized steel plates and pipes, electrolytic zinc-coated steel (pipes), 0.4-12 mm aluminum sheet (pipes) and 0.4-6 mm brass (pipes) and other thin metal materials.

metal tube lazer cutting .jpg
